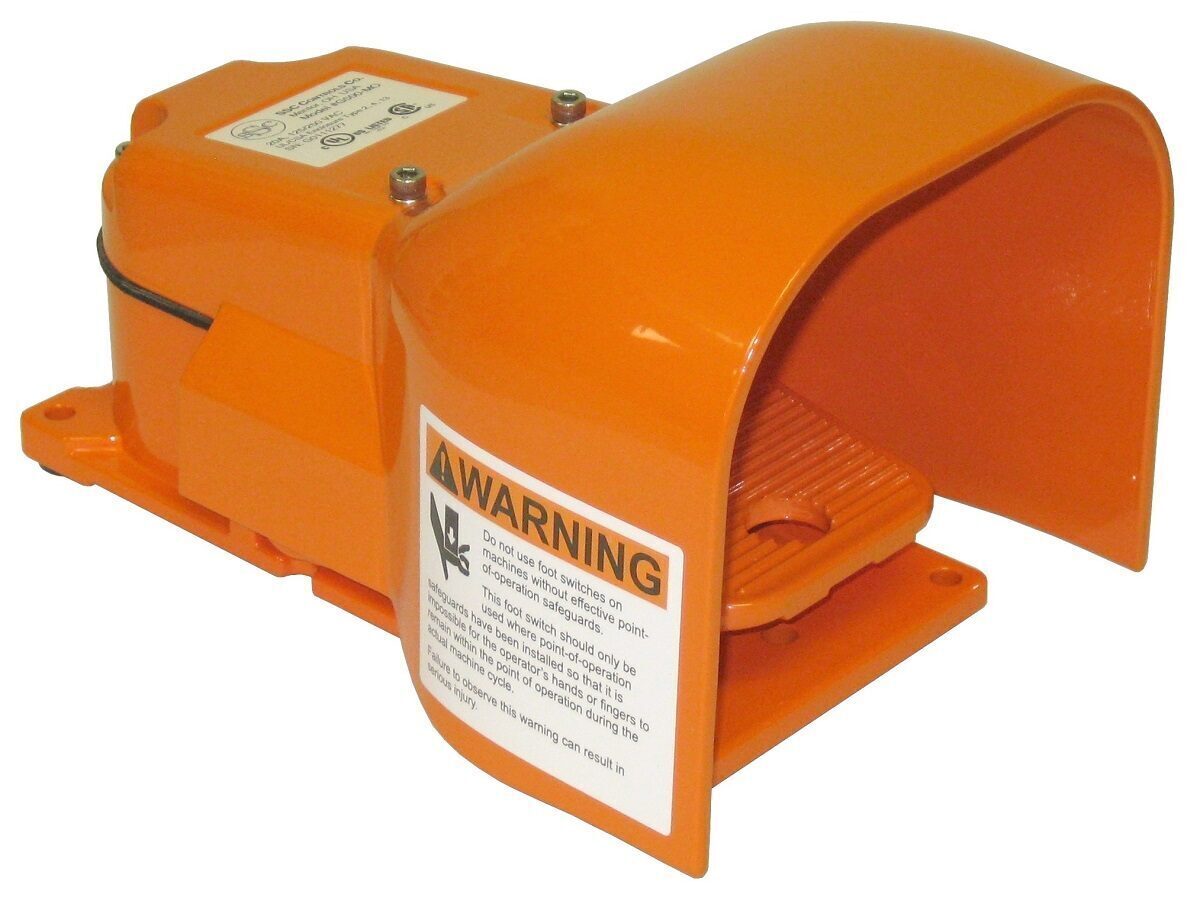

G502-MO-2S (G-Series Heavy-Duty Foot Switch)

$94.90

Front Gate Option (-GT)

The user must first lift the gate before operating the foot switch.

Cable Clamp Option (-C1)

Fits .25″ to .38″ OD cable.

Cable Clamp Option (-C2)

Fits .38″ to .50″ OD cable.

Cable Clamp Option (-C3)

Fits .50″ to .62″ OD cable.

Oversized Guard Option (-G2)

Adds an 8″ x 8″ oversized guard instead of the standard guard. Crafted of 3/16″ aluminum, this guard will not corrode or break and fits any large protected or padded boots. Note: The G2 Guard cannot be used with the Front Gate option.

Double-Break Switch Option (-DB)

Includes double-break switches instead of the standard SPDT switches. Double-break switches provide improved performance and switch life in some DC circuits. Electrical rating: 15A @ 125/250 VAC, 1A @ 125 VDC, 0.5A @ 250 VDC.

Handle Option (-HA)

Makes it easy to pick up and move around the unit.

Carrier Base Option (-CB)

Makes it easy to move around the unit, provides additional height above floor mats, and also allows cable routing out the back or sides.

SKU: G502-MO-2S Category: Tags: ,

Description

Heavy-duty foot switch for tough industrial, factory, and shop applications.  Simply press and hold to turn on, release to turn off, with 2-stage action between each switch.  Includes oversized guard, rugged housing, and precision Honeywell switches.

  • Action: momentary
  • # of Switches: 2
  • # of Stages: 2 (two-stage models have an additional force added in between the activation of each switch, allowing the user to distinguish between the first and second switches as the pedal is pressed down)
  • Rating: 20A, 1HP, 125/250 VAC; .5A, 125VDC; .25A, 250VDC
  • Contacts: SPDT each stage
  • Information Sheet (G-Series)
  • Dimension Print
  • Cross reference: 534-SWH Hercules, 534-SWHO, 534-SWHOX; Grainger® 6GPD2; McMaster-Carr® 7372K51 or 7372K71

Additional information

Weight 4.5 lbs
Dimensions 10 x 6 x 6 in
