F300-1502 (F-Series Medium-Duty-Foot Switch, Push-On / Push-Off)



SKU: F300-1502 Category:

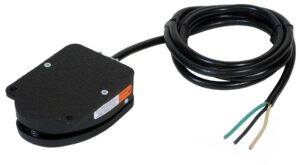

Push-on/push-off foot switch with die-cast housing, precise pedal action, and attractive finish.  Simply press the pedal once to turn it on, and press it again to turn it off (you can remove your foot and it will stay on until pressed again).  This foot switch comes with a cable with leads, so the user will need to hook the leads up to the circuit.  The switch will need to be wired into one side of the circuit (note: the black and white wire colors have no relevance or relationship to household wiring colors).

  • Action: maintained (push on/push off)
  • # of Switches: 1
  • Electrical Rating: 15 A, 125 VAC; 10 A, 250 VAC; ¾ HP, 125 VAC
  • Circuit: SPST
  • Cable or Terminals: 8-ft cable with leads
  • Cross Reference: Clipper with leads
  • Info Sheet
  • Exterior Dimensions
  • Wiring Diagram

Additional information

Weight 3.2 lbs
Dimensions 9 × 5 × 3 in
