DF500 (Dual-Pedal F-Series Foot Switch, 20 Amp)

$ 103.60

Adds a 12-gauge steel housing to protect from debris and enclose the foot switches.

SKU: DF500 Category:

Description

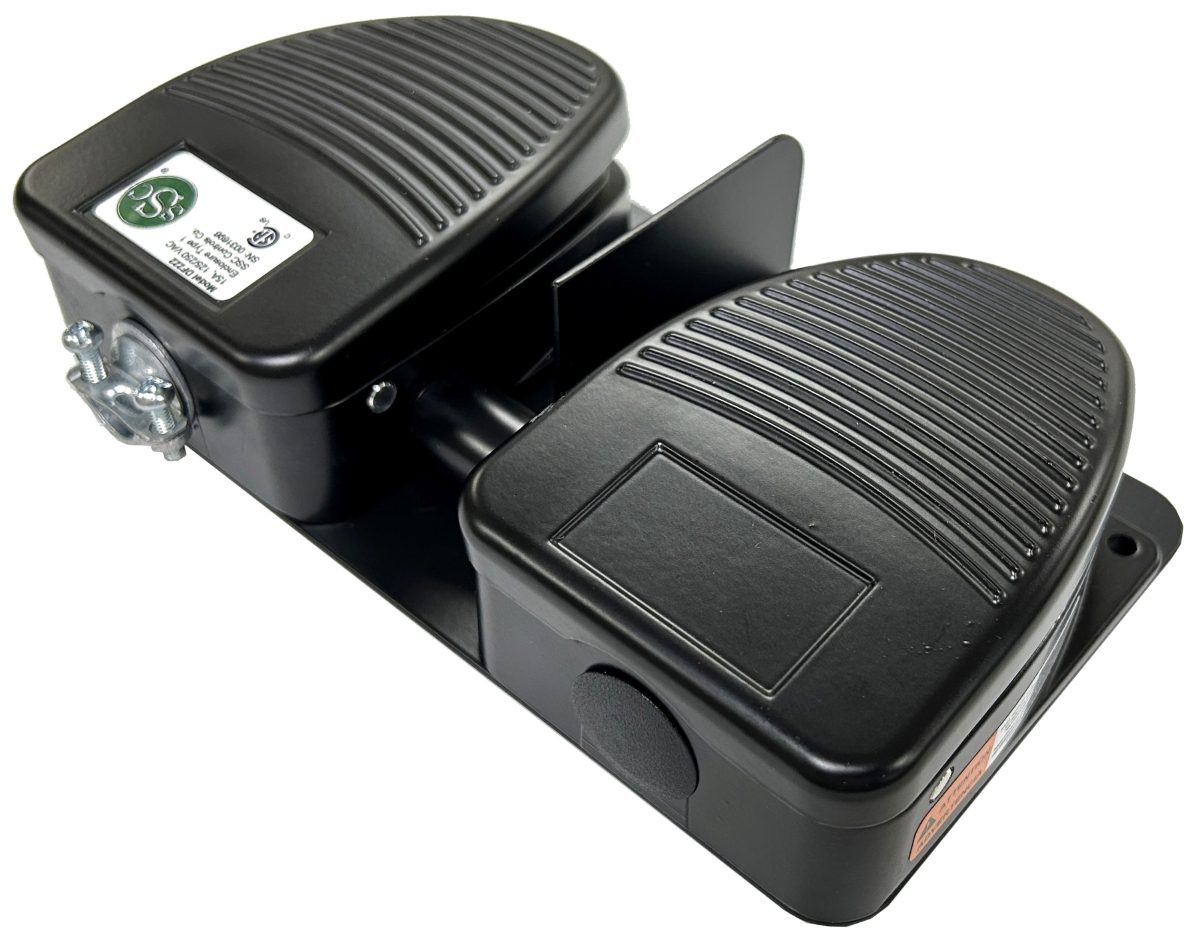

The DF500 is a dual foot switch with a connector tube to route the wiring from one side to the other, and a single cable exit point.  The foot switches are mounted on a welded steel base with a center divider and bumper feet.  Great for applications such as pipe rollers, scissor lifts, lift tables, positioners, twin pedal, up/down, and forward/reverse foot switch applications.

  • Action: momentary (press and hold to turn on, release to turn off, like a car horn)
  • # of Switches: 1 per side

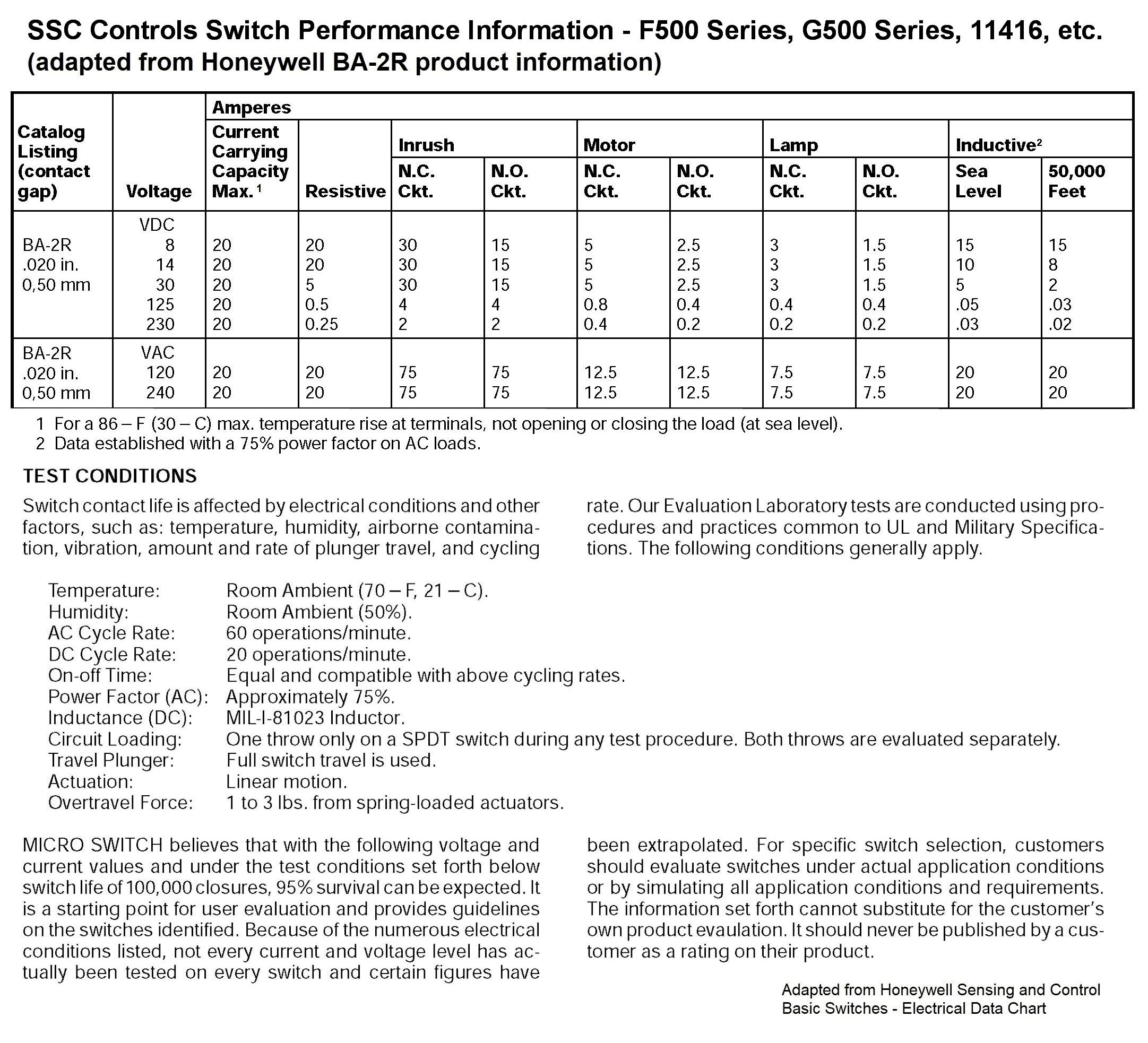

  • Electrical Rating, per Switch: 20 A, 125/250 VAC; 1 HP, 125 VAC; 2 HP, 250 VAC; 10 A, 125 VAC “L”; .50 A, 125 VDC; .25 A, 250 VDC
  • Circuit: SPDT each side with screw terminals
  • Cable: none
  • Product Info Sheet
  • Cross Reference: Twin 632-S Clipper

Note: The divider between the two foot switches is not included when the guard option is added.  If you need the divider with the guard option, please call to order, as this is a special option that adds $20.

Additional information

Weight 4.7 lbs
Dimensions 9 × 5 × 3 in
