Build Your Own Dual-Pedal BGX500 Foot Switch (The Orange Box)


Left Foot Pedal *

Right Foot Pedal *

Gate Option

Gate is available on the left side only. User must lift gate with toe before accessing the foot switch.

SKU: BGX500 Category:

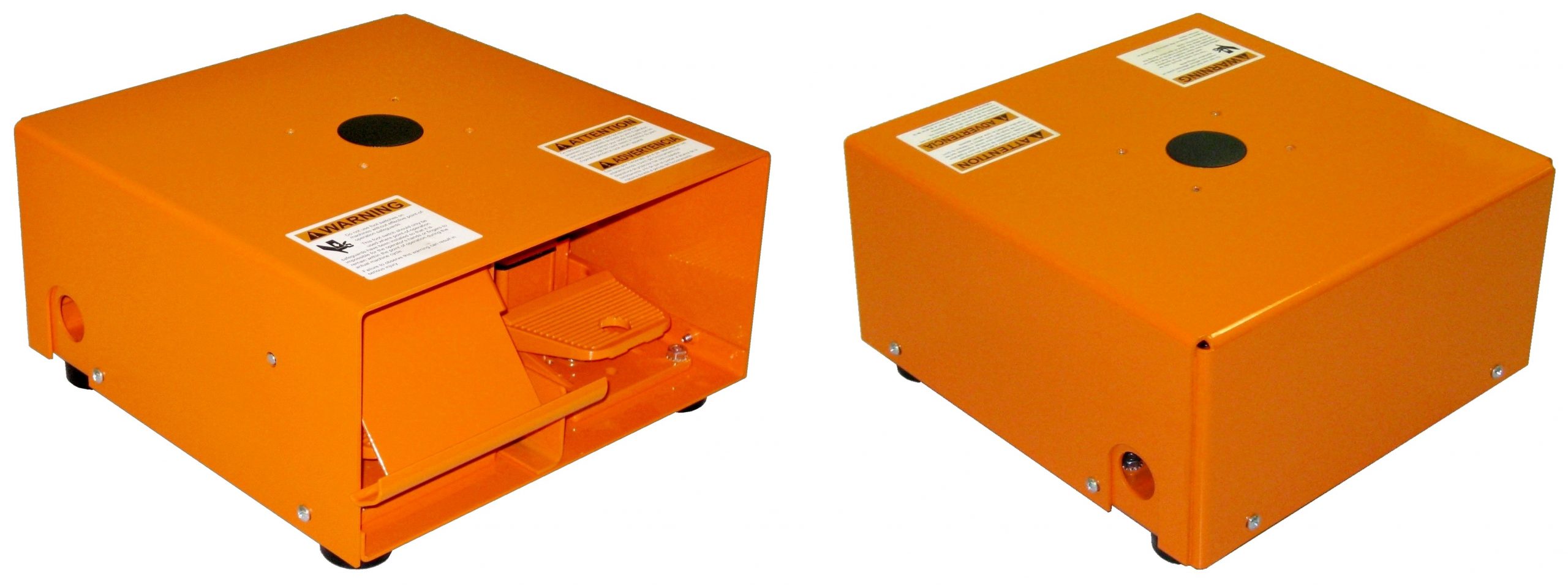

The BGX500 Dual Foot Switch consists of any two GX-Series foot switches mounted inside a steel box enclosure with heavy-duty bumper feet.  There is a connection area inside the back of the cover for wiring, and a single cable exit point out of either the left or right sides.  An opening on the top of the cover with four threaded press nuts allows the attachment of a custom handle, if needed.


An optional protective gate is available for the left-side foot switch only


Example 1: Model number BGX500-MO consists of one GX500-MO on each side.


Example 2: Model number BGX502-AT-2S/GX502-MO (w/ Gate Option selected) consists of one GX502-AT-2S on the left side and one GX502-MO on the right side (viewed from front), with the gate option on the left side.  This is also SSC model number DG500-7164 for Accurpress / Aberdeen / Halkin Tool model number FSW69616 (as of 2018).


Additional information

Weight 24 lbs
Dimensions 13 × 13 × 7 in
