Foot Switch Cross-Reference Guide

Below is a foot switch cross reference guide. Some models listed below are not exact equivalents; electrical rating, shape, and other characteristics may differ.  This serves as a general reference guide.  You can view the product's home page for specific details about each foot switch to determine if it meets the specifications required for your application.

The user is responsible to review the specifications, electrical ratings, foot switch comparison, and features of each model, as well as the safety and regulatory requirements of your application, before ordering.  Only a certified electrician or qualified personnel should select and install any foot switch. Read the foot switch safety warning before ordering any foot switch or control.

G-Series Heavy-Duty Foot Switches

Info Sheet/Image SSC Controls® Model Linemaster® Model Square D®, Grainger®, Allied Electronics® Model Description and Rating for SSC Models

G-Series Foot Switch Home Page



G-Series Foot Switch Pedal SSC Controls (Front View)



info sheet

G500-MO Linemaster® Hercules 531-SWH, 531-SWHO, 531-SWHOX Grainger® 6GPC1, 2W807, and 5KX05 (See below for Square D® 9002AW2 and other models); Allied Electronics® 70184026; McMaster-Carr® 7372K11 or 7372K31 momentary, single switch, 20 amps @ 125/250 VAC (SPDT)
G500-MA 571-DWH, 571-DWHO, 571-DWHOX McMaster-Carr® 7372K14 or 7372K32 maintained, single switch, 20 amps @ 125/250 VAC (SPDT)
G500-AT 511-B, 511-BO, 511-BOX McMaster-Carr® 7344K31 anti-trip, single switch, 20 amps @ 125/250 VAC (SPDT)
G500-AT-GT (add Front Gate Option) 511-BG, 511-BOXG Grainger® 3X680, 6GPC6 anti-trip with front gate, single switch, single stage, 20 amps @ 125/250 VAC (SPDT)
G502-AT 511-B2, 511-B2O, 511-B2OX Grainger® 6GPE7 (add "-GT" option if you also need front gate); McMaster-Carr® 7344K32 anti-trip, two switches, single stage, 20 amps @ 125/250 VAC (SPDT) each switch
G502-AT-GT (add Front Gate Option) 511-B2G, 511-B2OXG Allied Electronics® 70184028 anti-trip with front gate, two switch, single stage, 20 amps @ 125/250 VAC (DPDT)
G502-MO 532-SWH, 532-SWHO, 532-SWHOX Grainger® 6GPC7, 4A712; JLG 4360031; Allied Electronics® 70184027; McMaster-Carr® 7372K12 or 7372K34 momentary, two switches, single stage, 20 amps @ 125/250 VAC (SPDT) each switch
G502-MA 572-DWH, 572-DWHO, 572-DWHOX maintained, two switches, single stage, 20 amps @ 125/250 VAC (SPDT) each switch
G502-MO-2S 534-SWH, 534-SWHO, 534-SWHOX Grainger® 6GPD2 (with guard); 6GPD0 (without guard - order SSC GX502-MO-2S for no guard); McMaster-Carr® 7372K51 or 7372K71 momentary, two switches, two stage, 20 amps @ 125/250 VAC (SPDT) each switch
G502-AT-2S 511-B2A, 511-B2OA, 511-B2OXA anti-trip, two switches, two stage, 20 amps @ 125/250 VAC (SPDT) each switch
G502-AT-2S-GT (add Front Gate Option) 511-B2GA, 511-B2OXGA anti-trip with front gate, two switches, two stage, 20 amps @ 125/250 VAC (SPDT) each switch
G503-MO, G503-MA, etc. (three-switch models) 533-SWH, 573-DWH, etc. 20 amps @ 125/250 VAC per switch, three switches (all three go off at same time, but can be adjusted to activate separately)
not applicable 535-SWH, 575-DWH (3-stage foot switch) 20 amps @ 125/250 VAC per switch (3 stage - each switch goes off at separate time)
GX500-MO, GX502-MO, GX502-MO-2S, GX500-MO-DB, etc. 531-SWN, 532-SWN, 534-SWN, 536-SWN, etc. Grainger® 6GPC9 models with flat cover instead of a guard - see SSC's GX-Series Foot Switches for units without guards
G500-MO-GP, GX502-MO-GP, etc. (switch with gold plated contacts); call to order adds the use of gold-plated contacts to the switch of any G-Series (1 amp @ 125 VAC)
SSC part number 11416 534-SS (replacement switch); Honeywell BA-2R62-A4, BA-2R-A2 Rating: 20A @ 125/250 VAC, 1HP @ 125/250 VAC, .5A @ 125VDC, .25A @ 250VDC, with #6 screw terminals.
BGX500 or DG500 Linemaster® SP Dual models not applicable dual G-Series foot switch
SSC Models with Double-Break Switches (order by selecting the double-break option (-DB) on the model page) Linemaster® with Double-Break Switches Square D® with Double-Break Switches (Note: Square D® are rated up to 600V) Description and Rating for SSC Models
G500-MO-DB (add -DB option) 536-SWH, 536-SWHOX Square D® 9002AW2, 9002AW132 momentary, single switch, 15 amps @ 125/250 VAC (SPDT-DB)
GX500-MO-DB (add -DB option); does not have guard 536-SWN Square D® 9002AW1 momentary, single switch, 15 amps @ 125/250 VAC (SPDT-DB), no guard
G500-MA-DB (add -DB option) 576-DWH (or 576-DWN for no guard) Square D® 9002AW12 maintained, single switch, 15 amps @ 125/250 VAC (SPDT-DB)
G500-AT-DB (add -DB option) 511-B3, 511-B3O, 511-B3OX, 511-B3G  or 511-B3OXG (with gate) anti-trip, single switch, single stage, 15 amps @ 125/250 VAC (SPDT-DB)
G502-AT-DB (add -DB option) 511-B4, 511-B4O, 511-B4OX, 511-B4G or 511-B4OXG (with gate) anti-trip, two switch, single stage, 15 amps @ 125/250 VAC (SPDT-DB)
G502-AT-2S-DB (add -DB option) 511-B4A, 511-B4OA, 511-B4OXA, 511-B4GA or 511-B4OXGA (with gate) anti-trip, two switch, two stage, 15 amps @ 125/250 VAC (SPDT-DB)
G502-MO-DB (add -DB option) 537-SWH Square D® 9002AW14, 9002AW133 momentary, two switches, single stage, 15 amps @ 125/250 VAC (SPDT-DB) each switch
GX502-MO-DB (add -DB option); does not have guard 537-SWN Square D® 9002AW13 momentary, two switches, single stage, 15 amps @ 125/250 VAC (SPDT-DB) each switch, no guard
G502-MA-DB (add -DB option) 577-DWH (or 577-DWN for no guard) maintained, two switches, single stage, 15 amps @ 125/250 VAC (SPDT-DB) each switch
G502-MO-2S-DB (add -DB option) 538-SWH Square D® 9002AW6, 9002AW134 momentary, two switches, two stage, 15 amps @ 125/250 VAC (SPDT-DB) each switch
GX502-MO-2S-DB (add -DB option); does not have guard 538-SWN Square D® 9002AW5 momentary, two switches, two stage, 15 amps @ 125/250 VAC (SPDT-DB) each switch, no guard
G500-MO-DB-GT (add -DB and -GT options) Square D® 9002AW117 momentary, single switch, 15 amps @ 125/250 VAC (SPDT-DB), with front gate
G502-MO-DB-GT (add -DB and -GT options) Square D® 9002AW124 momentary, two switches, single stage, 15 amps @ 125/250 VAC (SPDT-DB) each switch, with front gate
G502-MO-2S-DB-GT (add -DB and -GT options)  511-B4OXGA (also has anti-trip) Square D® 9002AW119 momentary, two switches, two stage, 15 amps @ 125/250 VAC (SPDT-DB) each switch, with front gate

F-Series Medium-Duty Foot Switches

Info Sheet/Image SSC Model Number Linemaster® Model Number Comparable Model Numbers Description/ Rating for SSC Models

F-Series Foot Switch Home Page

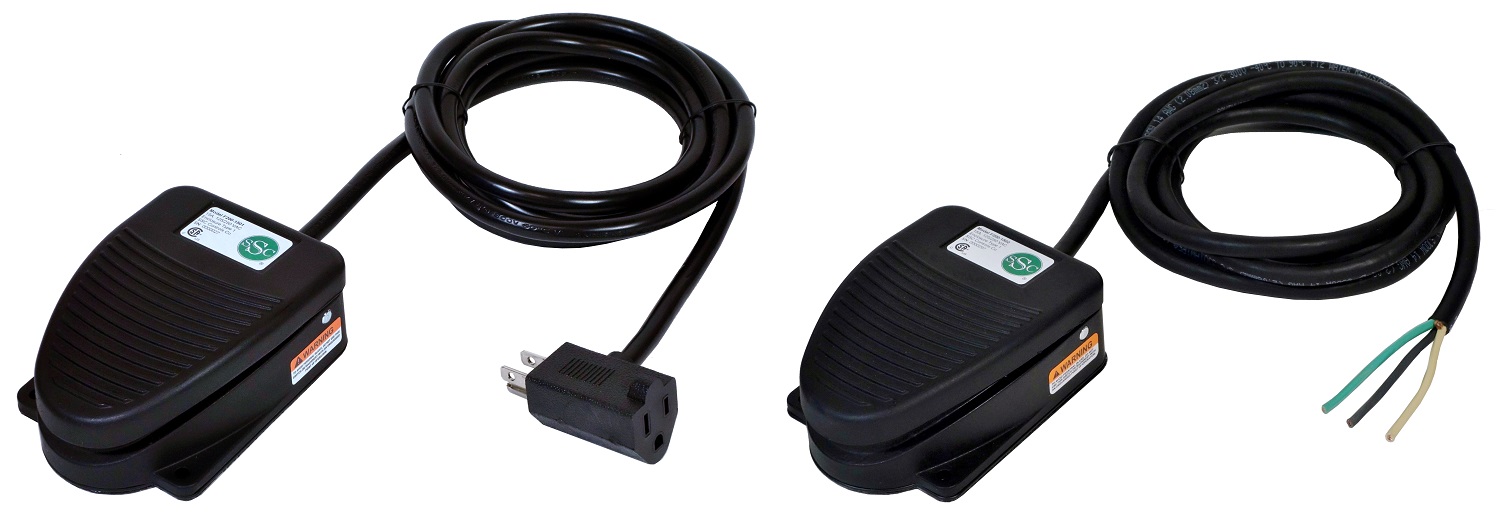

SSC Controls Foot Switch Pedal Clipper



info sheet





DF-Series Dual Foot Switch Home Page



F200 Linemaster® Clipper Foot Switch 632-S (see F500 if you need 20-amp capacity), 638-S Allied Electronics© 70184040 (see F500 if you need 20-amp capacity) 15 amp @ 125/150 VAC, SPDT,  momentary action (press and hold to keep on)
F200-1501 Clipper 632-SC3 Allied Electronics© 70183972 15 amps @ 125 VAC, SPDT, momentary, with plug
F200-1502 Clipper 632-SC36, 638-SC38 n/a 15 amps @ 125/250 VAC, momentary, with leads
F202 Clipper 635-S n/a 15 amps @ 125/250 VAC, DPDT, momentary
F222 Clipper 636-S n/a 15 A, ½ HP, 125/250 VAC per stage (2-stage momentary)
F300 Clipper 632-DA Grainger® 2W808; Allied Electronics© 70183969 20 amps, 125 VAC; 10 amps, 250 VAC; SPST, maintained action (press to turn on, press again for off)
F300-1501 Clipper 632-DC3A n/a 15 A, 125 VAC; SPST, maintained, with plug
F500 Clipper 632-S Grainger® 6GPC8 foot switch, Genie® 13482 20A, 125/250 VAC; momentary
F502 n/a n/a DPDT; 10A 125/250 VAC; momentary
F540 Clipper 633-S n/a SPDT-DB (double break); 15A 125/250 VAC; 1A 125 VDC; .5A 250 VDC; momentary
DF200, DF202, DF300, DF500 Twin 632-S, Twin T-91-S Allied Electronics 70184041

DF200: 15A, 125/150 VAC, SPDT, momentary

DF202: 15A, 125/150 VAC, DPDT, momentary

DF300: 20 A, 125 VAC; 10 A, 250 VAC; 1.5 HP, 125/250 VAC, maintained

DF500: 20A, 125/250 VAC; momentary

S-Series Light-Duty Foot Switches

Info Sheet/Image SSC Model Number Linemaster® Model Number Comparable Model Numbers Description/ Rating for SSC Models
S-Series Foot Switch Home Page



lightDutyCat



S100 info sheet



S400 info sheet

S100-1001 Linemaster® Treadlite T-91-SC3 Conntrol® Series 892 or 862

Allied Electronics® 70184036

10 amps, 125 VAC, momentary (press and hold to keep on)
S100-1002 Treadlite T-91-SC36, T-91-SCEA (European mods) Conntrol® Series 892 or 862

Allied Electronics® 70184045

10 amps, 125/250 VAC, momentary (press and hold to keep on)
S100-1501 Treadlite T-91-SC3A Cabela's® meat grinder foot switch IK-540844; LEM® 724; Conntrol® Series 892 or 862 15 amps, 125 VAC, momentary (press and hold to keep on)
S100-1502 Treadlite T-91-SC36A Conntrol® Series 892 or 862

Allied Electronics® 70184030

15 amps, 125/250 VAC, momentary (press and hold to keep on)
S420-1001 Treadlite T-91-DC3 Conntrol® Series 892 or 862 10 amps, 125 VAC, maintained (press to turn on, press again for off)
S420-1002 Treadlite T-91-DC36 Conntrol® Series 892 or 862 10 amps, 125/250 VAC, maintained (press to turn on, press again for off)
S420-1501 Treadlite T-91-DC3, 971-DC3 Conntrol® Series 892 or 862 15 amps, 125 VAC, maintained (press to turn on, press again for off)
S420-1502 Treadlite T-91-DC36 Conntrol® Series 892 or 862 15 amps, 125/250 VAC, maintained (press to turn on, press again for off)
S100-0103; call to order T-91-PS supplied with 8-ft 22/1 audio cable with 2 contact .250 diameter phone plug, not grounded; 1 amp 30 VAC max; class 2 circuits only
S100 (no cable); call to order T-91-S, 971-S 15 amps, 125/250 VAC, momentary (press and hold to keep on); does not include cable

DS100 Dual Foot Switches

Info Sheet/Image SSC Model Number Linemaster® Model Number Comparable Model Numbers Description/ Rating for SSC Models


DS100 Home Page

Guide-DS100

info sheet

DS100 and DS100-DG Linemaster® TWIN 632-S, TWIN 971-SMC48, TWIN T-91-SC48, TWIN T-91-S, TWIN 491-S, TWIN HT-52-S (20-amp, no cable), TWIN 635-S

Conntrol® Series 863 Dual Series 893 Dual Series 220



Grainger® 6GPA0, 6GPF4, 6GPD8, 6GPD9

13 amps @ 125/250 VAC; each switch is wired normally open

B-Series Foot Switches

Info Sheet/Image SSC Model Number Linemaster® Model Number Comparable Model Numbers Description/ Rating for SSC Models
 B-Series Home Page



Guide-B-Series



info sheet

B800-1501 Linemaster® Compact 491-SC3 Allied Electronics®  70184038 15 amps @ 125/250 VAC; wired normally open; cable with 3-pronged series tap plug (piggyback)
B800-1502 Linemaster® 491-SC36  Allied Electronics®  70184039 15 amps @ 125/250 VAC; wired normally open; cable with leads
B850-1501 (with mounting plate) n/a 15 amps @ 125/250 VAC; wired normally open; cable with 3-pronged series tap plug (piggyback)
B850-1502 (with mounting plate) Linemaster® 491-SC36MP (with mounting plate) 15 amps @ 125/250 VAC; wired normally open; cable with leads
B900 Linemaster® 491-S or 492-S Allied Electronics®  70184037 20 amps @ 125/250 VAC; no cable
DB900 Linemaster® Compact Twin 491-S Twin foot switch; 20 amps @ 125/250 VAC; no cable

Potentiometer Foot Controls

Info Sheet/Image SSC Model Number Linemaster® Model Number Comparable Model Numbers Description/ Rating for SSC Models
L and M Home Page



Guide-L-and-M

L and M info sheet



G700 Home Page



Guide-G700-Series

G700 info sheet

L- or M-Series Potentiometer Foot Control



G700 Potentiometer Foot Control

Linemaster® Hercules Potentiometer Foot Control



500-H-1K, 500-H-5K, 500-H-10K - replace with G700-1K, G700-5K, G700-10K (1/4-watt pot in heavy-duty housing) or L1000, L5000, L10,000 (2-watt pot and comes with cable)



500-AH-1K, 500-AH-5K, 500-AH-10K - replace with G700-1K-S, G700-5K-S, G700-10K-S (1/4-watt pot in heavy-duty housing) or L1000-S, L5000-S, L10,000-S (2-watt pot and comes with cable)



500-AN, 500-A2H and other models are available



Grainger® 5GWJ7, 4KA16, 4KA17, OHASAA-1K, 4KA18 (see TIG Foot Controls homepage) Available in potentiometer resistances of 1000, 5000, 10,000, 25,000, and other common values.

Other Cross-Reference Models

Grainger® Foot Switches Grainger® Dayton-Brand Light-Duty Foot Switch 6GPA9, 6GPF0, 6GPF1, 6GPF3, 6GPF8, 6GPC4, 6GPD6, 6GPF7, 6GPF9, 6GPG1, 6GPG2, 6GPG5, 6GPG7 (See Light-Duty Foot Switches to determine proper replacement model.)



Grainger® Dayton-Brand General-Duty Foot Switch: 6GPC8, 6GPC2, 6GPC3, 6GPF2, 6GPG0, 6GPE9, 6GPC0, 6GPA1, 6GPA8, 6GPE0



Grainger® Dayton-Brand Heavy-Duty Foot Switch: 6GPC1, 6GPC7, 6GPD2, 6GPE7, 6GPC6, 6GPC9, 6GPD0, 6GPE3, 6GPA5, 6GPA7, 2ET85, 2ET87, 2ET92, 2ET95, 6GPA4, 6GPA6, 6GPD4, 6GPE2, 6GPE6, 2ET91, 2ET94, 6GPD1, 6GPD3, 6GPE5, 6GPE8, 2ET89, 2ET90 (See Heavy-Duty Foot Switches to determine proper replacement model.)

McMaster-Carr® Foot Switches Call us today to cross-reference any McMaster foot switch model at 1-440-205-1600.  We can offer altermantives for most models.
Snorkel® Foot Switch Snorkel foot switches with a single switch typically have double-break switch contacts and momentary pedal action (press and hold to turn on, release to turn off).  Order SSC model number G500-MO-DB (see G-Series page for details).  If you don't need the double-break circuit type, order SSC model number G500-MO.
Genie® Foot Switch Genie foot switches are typically the clipper clamshell style (see F-Series) with a single switch inside each unit and momentary pedal action (press and hold to turn on, release to turn off) and have a guard.  Order SSC model number F500-G for a foot switch with the guard, or F500 for the foot switch without the guard (replaces Genie® 13482 or Clipper 632-S).
Pizzato® Foot Switch Replace your Pizzato® PX or PA Foot Switch or Gemco Ametec® Foot Switch with a G-Series foot switch. Upgrade your plastic foot switch to the heavy-duty G-Series.  Select models at the G-Series home page.

Other Notes:

  • See the Foot Switch Selection Guide for more information about switch operation and switch circuitry.
  • For information about cross-reference of TIG welding foot control models, see the TIG Foot Control Cross-Reference Guide.
  • Square D® and Linemaster® are registered trademarks of the Schneider Electric Co./ Square D Division and the Linemaster® Switch Corporation, respectively.  Conntrol® is a registered trademark of ConnTrol International, Inc.  Pizzato® is a registered trademark of Pizzato Elettrica LLC.   AGBernstein® is a registered trademark of Bernstein AG.  McMaster® and Grainger® are trademarks of McMaster-Carr Supply Company and W.W. Grainger, Inc., respectively.  Allied Electronics© is a registered trademark of Allied Electronics, Inc.  Snorkel® and Genie® are registered trademarks of the Snorkel Corporation and Terex Corporation, respectively.
